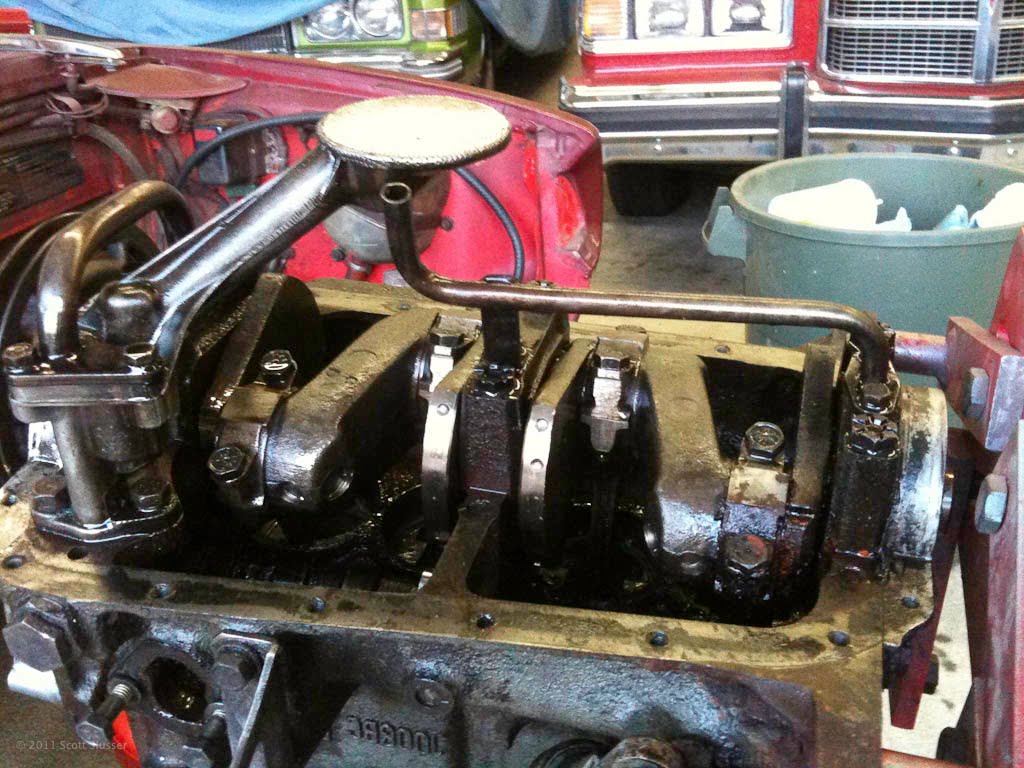

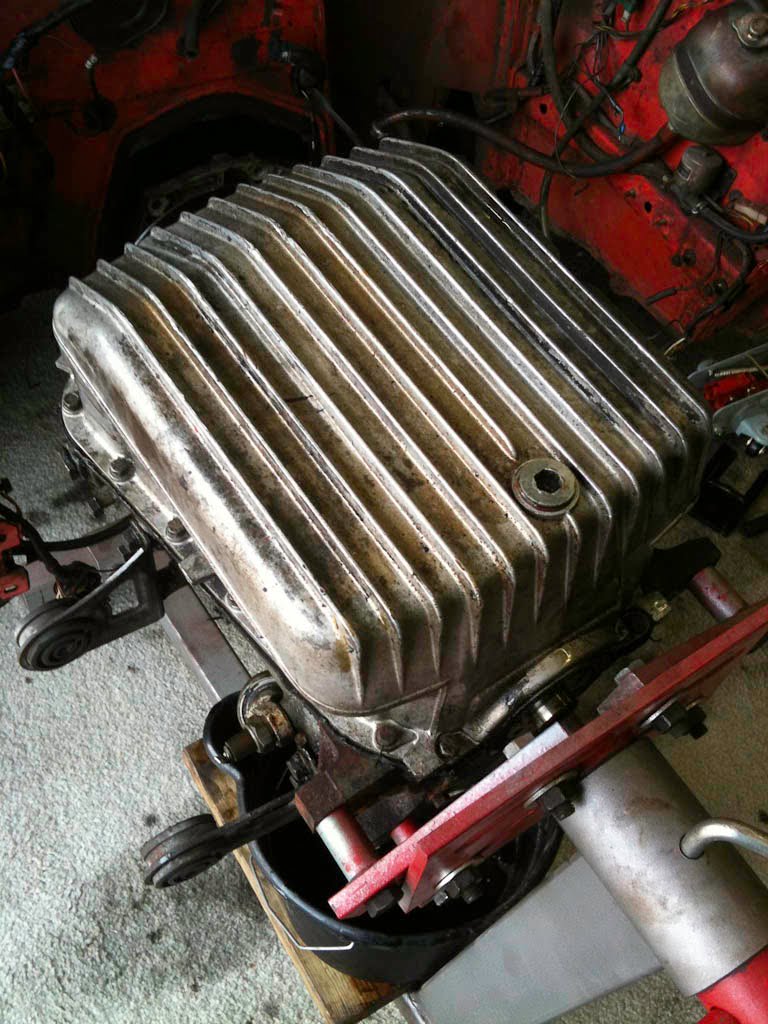

Engine oil drained and the engine upside down to tear into the bottom half.Oil pan removal. Some of these bolts did not have enough room for a ratcheting wrench.Take off the engine mount (Block is upside down)Oil pan off and first look into the block. The oil pump is a sump. The crankshaft is visible.A few more pictures for my benefit when rebuilding time comes.Oil pan off and first look into the block. The oil pump is a sump. The crankshaft is visible.A few more pictures for my benefit when rebuilding time comes. You can see the timing roller chain under the timing cover.
The Fiat 850 Project
The Fiat 850 Project is a chronicle of the restoration process of a 1971 Fiat 850 Sport Spider. I use a combination of my own images and images/tables/logos I found on the internet while I was doing research. If you own one of these images, please let me know and I will credit you or take it down.
